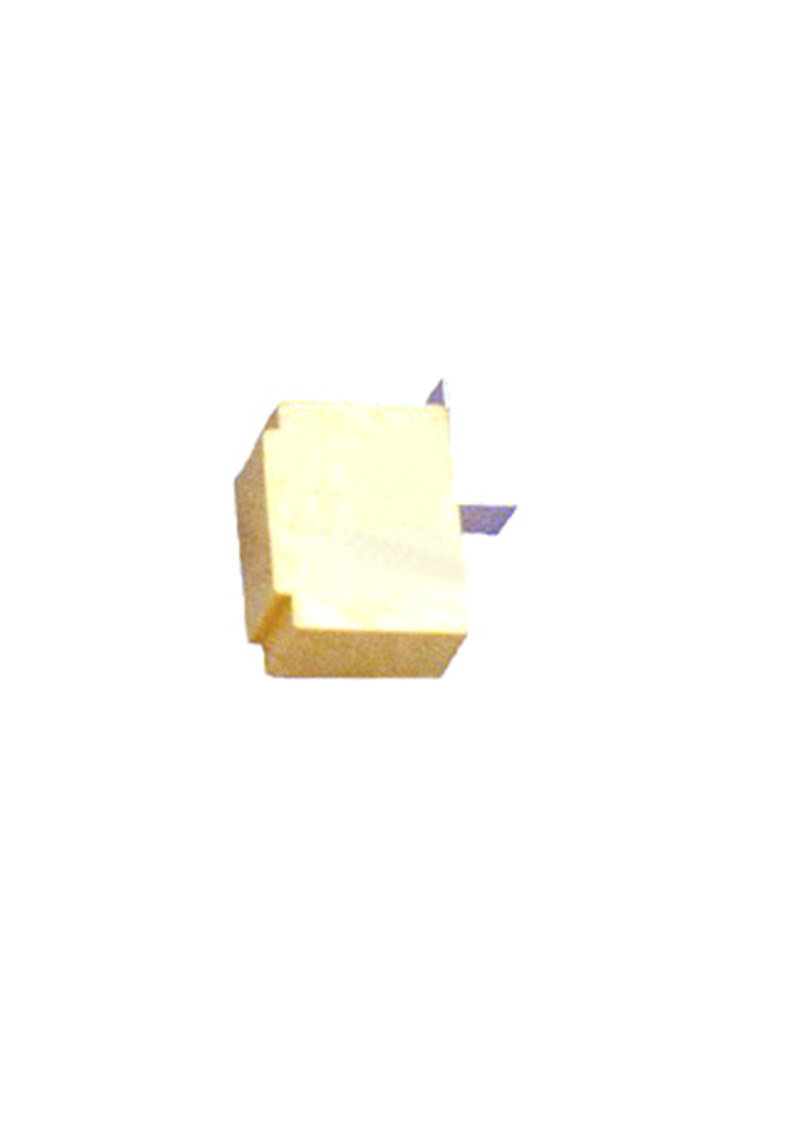

Magnetic latching relay
Technical parameter:
1、Rated voltage :DC?5-24V;
2、Coil power consumption :1W;
3、Contact pressure drop :≤ 100mV;
4、Contact load :10A, 30A,50A,250VAC;
5、Insulation resistance: ≥1000?mΩ;
6、Medium pressure: coil contacts between; ≥AC1500VAC between 2000VAC contacts;
7、Temperature rise of terminal under rated load :≤55℃ (test condition: 20℃);
8、Terminal connection: spot-weldable copper flexible stranded wire;
9、Ambient temperature :-25 ~ +55℃;
10、Relative humidity: 95% at +40℃;
11、Atmospheric pressure :86 ~ 106kpa;
12、Vibration :10 ~ 55Hz double amplitude 1.5mm;
13、Impact: 500 m/s squared, 11 ms;
14、Life: 10000 timest.
